| SNOW SCIENCE |

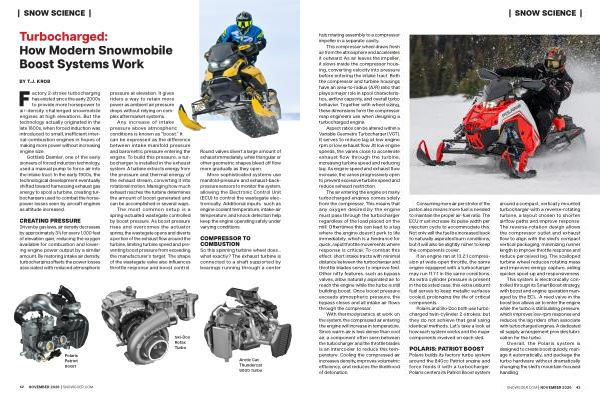

Turbocharged: How Modern Snowmobile Boost Systems Work
BY T. J. KROB
Factory 2-stroke turbocharging has existed since the early 2000s to provide more horsepower to air-density challenged snowmobile engines at high elevations. But the technology actually originated in the late 1800s, when forced induction was introduced to small, inefficient internal-combustion engines in hopes of making more power without increasing engine size.
Gottlieb Daimler, one of the early pioneers of forced induction technology, used a manual pump to force air into the intake tract. In the early 1900s, the technological development eventually shifted toward harnessing exhaust gas energy to spool a turbine, creating turbochargers used to combat the horsepower losses seen by aircraft engines as altitude increased.
CREATING PRESSURE
Driven by gas laws, air density decreases by approximately 3 % for every 1,000 feet of elevation gain, reducing the oxygen available for combustion and lowering engine power output by a similar amount. By restoring intake air density, turbocharging offsets the power losses associated with reduced atmospheric pressure at elevation. It gives riders a way to retain more power as ambient air pressure drops without relying on complex aftermarket systems.
Any increase of intake pressure above atmospheric conditions is known as“ boost.” It can be expressed as the difference between intake manifold pressure and barometric pressure entering the engine. To build this pressure, a turbocharger is installed in the exhaust system. A turbine extracts energy from the pressure and thermal energy of the exhaust stream, converting it into rotational motion. Managing how much exhaust reaches the turbine determines the amount of boost generated and can be accomplished in several ways.
The most common setup is a spring-actuated wastegate controlled by boost pressure. As boost pressure rises and overcomes the actuator spring, the wastegate opens and diverts a portion of the exhaust flow around the turbine, limiting turbine speed and preventing boost pressure from exceeding the manufacturer’ s target. The shape of the wastegate valve also influences throttle response and boost control.
Round valves divert a large amount of exhaust immediately, while triangular or other geometric shapes bleed off flow more gradually as they open.
More sophisticated systems use manifold-pressure and exhaust-backpressure sensors to monitor the system, allowing the Electronic Control Unit( ECU) to control the wastegate electronically. Additional inputs such as engine coolant temperature, intake-air temperature, and knock detection help keep the engine operating safely under varying conditions.
COMPRESSOR TO COMBUSTION
So this spinning turbine wheel does … what exactly? The exhaust turbine is connected to a shaft supported by bearings running through a center
Polaris Patriot Boost
Ski-Doo Rotax Turbo
Arctic Cat Thundercat 9000 Turbo
42 NOVEMBER 2026 | SNOWGOER. COM
